The spokes of commercial vehicle wheels are key components that connect the hub and rim. Their design not only affects the aesthetics of the vehicle, but is also directly related to the vehicle's performance, safety and fuel economy. This article will conduct an in-depth analysis of the spoke shape of commercial vehicle wheels from multiple aspects, including spoke Material selection, Shape design, Quantity configuration and Manufacturing process.

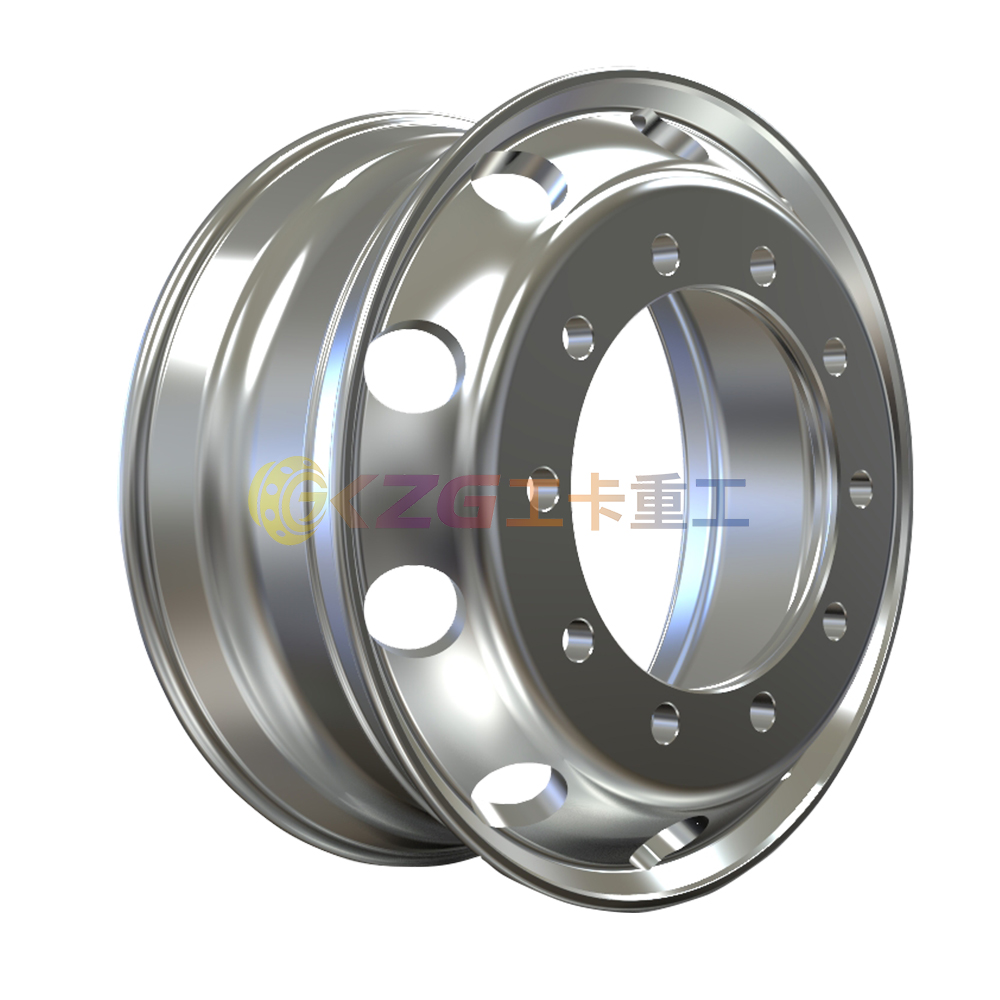

The main material choices for wheel spokes are aluminum alloy and steel. Due to itslightweight characteristics, aluminum alloy wheel spokes can significantly reduce the unsprung mass of the vehicle and improve handling performance and fuel economy. At the same time, the aluminum alloy material has good corrosion resistance and heat dissipation properties,which helps extend the service life of the wheel spokes. However, the cost of aluminum alloy wheel spokes is relatively high.

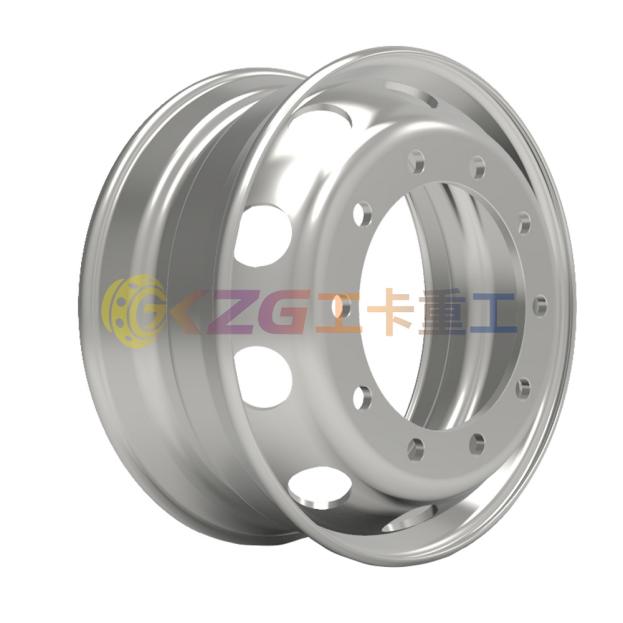

In comparison, steel spokes offer superior strength and cost. Steel spokes have high rigidity and load-bearing capacity and are suitable for heavy-duty commercial vehicles.Although it is heavier, its cost is lower, so it is widely used in some commercial vehicles that have strict cost requirements.

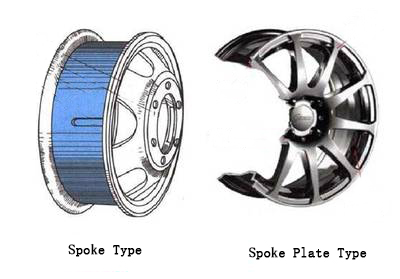

The spoke shape design mainly includes three types: spoke type, spoke plate type and combined type.Spoke type spokes have good ventilation and heat dissipation performance, which can effectively reduce the thermal attenuation of the brake system and improve the braking performance. However, the structure of spoke type spokes is relatively complex and the manufacturing cost is high.
The spoke plate type spoke has a relatively simple structure and high stability, but the ventilation and heat dissipation performance is relatively poor. The combined spoke combines the advantages of spoke type and spoke plate type spokes, and has both good ventilation and heat dissipation performance and high structural stability.
For heavy commercial vehicles such as buses and trucks, the wheel hub design with convex front and concave rear is a common choice.This design can better share the weight of the front and rear of the vehicle body, improve the load-bearing capacity and stability. At the same time, the wheel hub design with convex front and concave rear can also reduce air resistance and improve the vehicle's driving efficiency and fuel economy.
The number of spokesis also an important factor affecting vehicle performance. More spokes can provide more uniform support, enhance the strength and rigidity of the wheel hub, and help improve the vehicle's load-bearing capacity and handling performance. However, more spokes will also increase the total weight of the spokes, which will have an adverse effect on fuel economy.
In contrast, fewer spokes may have advantages in terms of lightweight and aesthetics. However, it should be noted that too few spokes may reduce the strength and rigidity of the wheel hub, affecting the safety performance of the vehicle.
Material utilization is an important consideration in the spoke manufacturing process. By optimizing the manufacturing process, material utilization can be significantly improved and production costs reduced. For example, the process of assembling and welding two narrow ring spoke blanks into one wide ring spoke blankcan increase the material utilization rate from about 60% to more than 95%, greatly reducing material waste.
Welding is one of the key links in the spoke manufacturing process. Reasonable welding technology can not only ensure the strength and rigidity of the spoke, but also improve the welding quality and extend the service life of the spoke. During the welding process, it is necessary to strictly control parameters such as welding temperature, welding speed and welding position to ensure that the welding quality meets the design requirements.
In summary, the design of commercial vehicle wheel spokes needs to comprehensively consider multiple factors such as material selection, shape design, quantity configuration and manufacturing process. In terms of material selection, the appropriate material should be selected according to the specific needs and cost budget of the vehicle; in terms of shape design, the appropriate shape should be selected according to the vehicle's load-bearing capacity and aerodynamic characteristics; in terms of quantity configuration, the requirements of lightweight and load-bearing capacity should be balanced; in terms of manufacturing process, the process flow should be optimized to improve material utilization and welding quality.
The styling design of commercial vehicle wheel spokes is a complex and important task. Through scientific and reasonable styling design, the performance, safety and fuel economy of the vehicle can be significantly improved. Therefore, automobile manufacturers need to consider multiple factors when designing wheel spokes to optimize and balance vehicle performance. At the same time, with the continuous advancement of manufacturing processes and the continuous innovation ofmaterials, the shape design of commercial vehicle wheel spokes will also usher in more possibilities and room for development.
