1.Giant mining

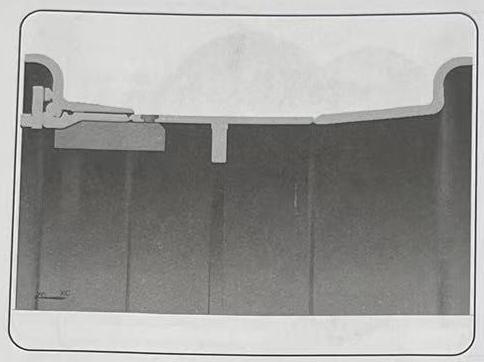

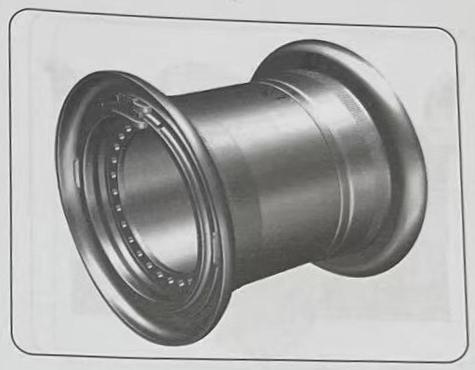

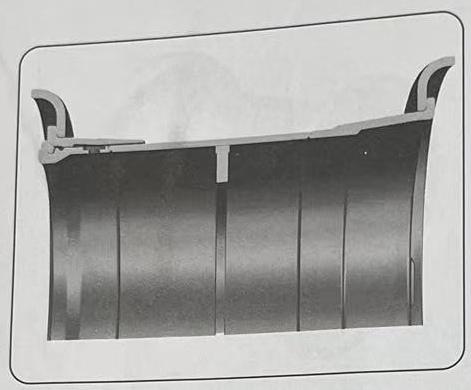

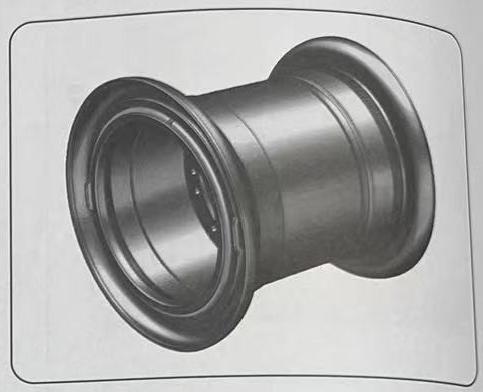

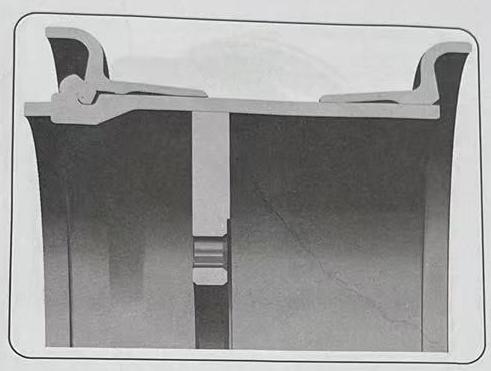

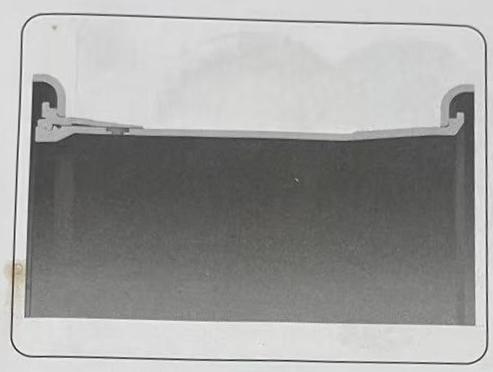

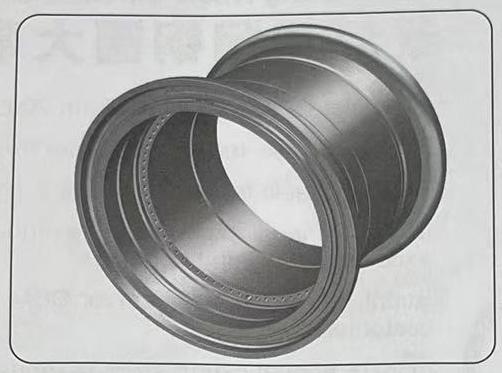

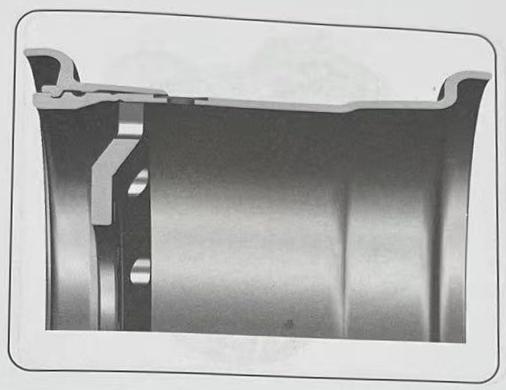

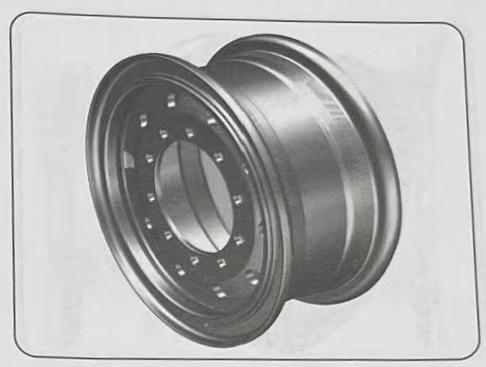

1.Rigid  Dump  Truck-Standard (5-Piece)

Rim  Size	Recommended Tire
39-32.00/4.0	40/65-39
45-36.00/4.5	45/65R45
49-17.00/3.5	24.00-49
49-19.50/4.0	27.00R49
51-22.00/4.5	30.00R51
51-24.00/5.0	33.00-51
51-26.00/5.0	36.00-51
51-32.00/4.5	37.5-51

Rim Size	Recommended Tire
51-40.00/4.5	50.00-51
57-27.00/6.0	37.00R57
57-29.00/6.0	40.00R57
57-32.00/6.0	46/90R57
57-32.00/6.5	48/95-57
57-34.00/5.0	50/80-57
63-36.00/5.0	53/80R63
63-44.00/5.0	59/80R63

All the feature of 5-piece with the additional benefits of

All critical component surface and mating surface 100%machined

All the weld 100%UT tested

Forged/Seamless  flanges(optional)

Integral continuous pry bar slot for ease of component servicing

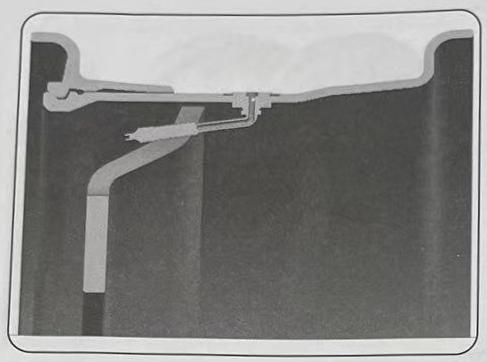

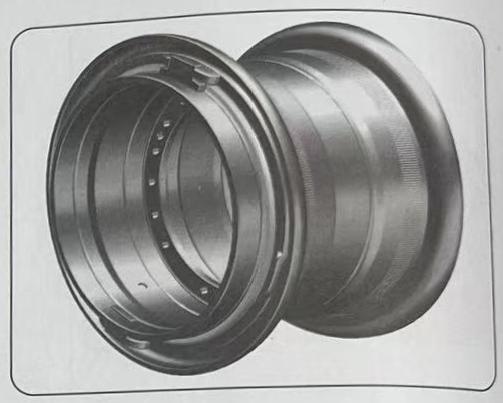

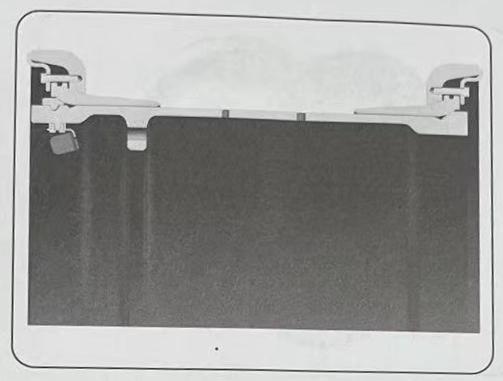

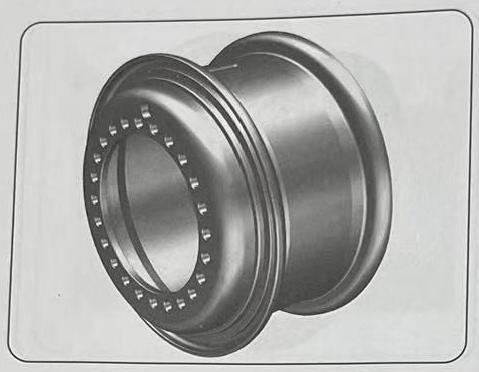

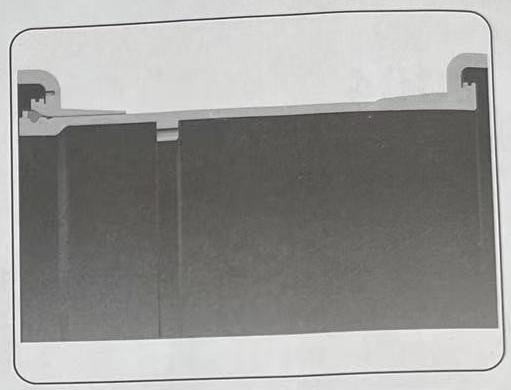

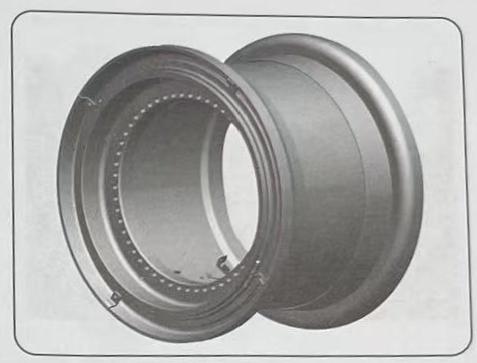

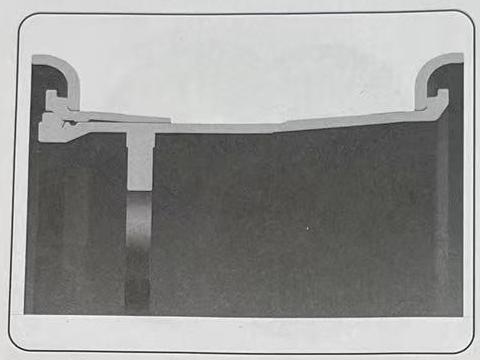

2.Rigid Dump Truck-Quick Change(6-Piece  &7-Piece)

Rim Size	Recommended  Tire
57-32.00/6.0	45/90R57
57-34.00/5.0	50/80-57
63-36.00/5.0	53/80R63
63-38.00/5.0	53/80R63
63-41.00/5.0	56/80R63
63-44.00/5.0	59/80R63

Rim Size	Recommended Tire
51-22.00/4.5	30.00R51
51-24.00/5.0	33.00-51
51-26.00/5.0	36.00-51
51-40.00/4.5	50.00-51
57-27.00/6.0	37.00R57
57-29.00/6.0	40.00R57

All the feature of 5-piece with the additional benefits of.…

For significant reduction of tire change-overtime

Allows the rims remain attached to the vehicle during tire change

7-piece used as the outer rim of duals

2.Surface Mining

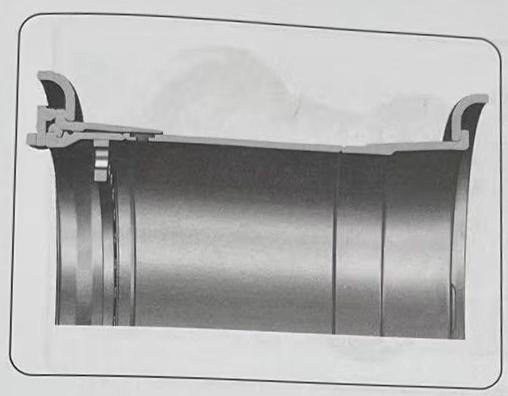

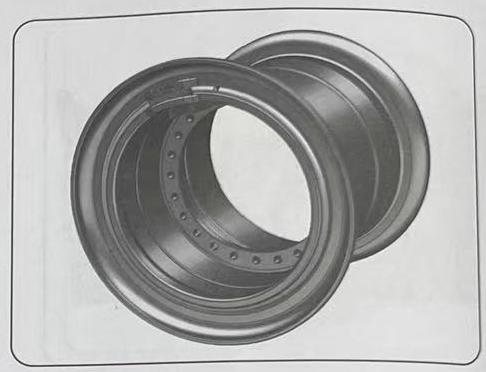

1.Rigid Dump Truck

Rim Size	Recommended Tire
25-10.00/1.5	14.00-25
25-11.25/2.0	16.00-25
25-13.00/2.5	18.00-25
25-19.5/2.5	23.5-25
25-22.00/3.0	26.5-25
25-25.00/3.5	29.5-25

Rim Size	Recommended Tire
29-25.00/3.5	29.5-29
29-27.00/3.5	33.25-29
33-28.00/3.5	33.5-33
33-13.00/2.5	18.00-33
35-15.00/3.0	21.00-35
35-17.00/3.5	24.00-35

All the feature of 5-piece with the additional benefits of.…

All critical component surface and mating surface 100%machined

All  the  weld  100%UT  tested

Standard/heavy duty(optional)

Widened flange(optional on some sizes)

2.Articulated Dump Truck

Rim Size	Recommended Tire
25-19.50/2.5	23.5R25
25-22.00/3.0	26.5R25

Rim Size	Recommended Tire
25-25.00/3.5	29.5R25
29-25.00/3.5	29.5R29

All the feature of 5-piece with the additional benefits of …

All the weld  100%UT tested

Standard/heavy    duty(optional)

3.Underground Mining

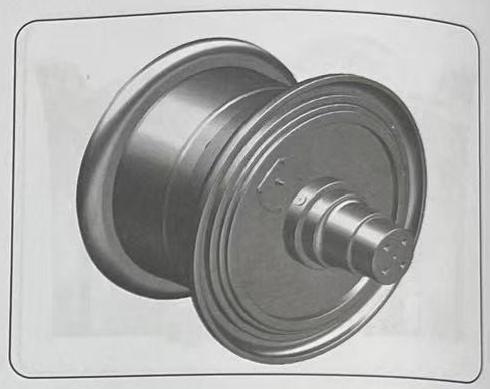

1.Dump Truck

Rim Size	Recommended Tire
25-11.25/2.0	16.00R25
25-13.00/2.5	18.00R25
25-19.50/2.5	23.5R25
25-22.00/3.0	26.5R25

Rim Size	Recommended Tire
25-25.00/3.5	29.5R25
29-27.00/3.5	33.25-29
33-28.00/3.5	35/65R33

All the feature of3and 5-piece with the additional benefits of …

More  unique  and  protective  design

All the weld 100%UT tested

Use of standard construction wheel component

2.Hauler/Loader/Support Drill Rig

Rim Size	Recommended Tire
15-7.5	10.00-15
20-7.0	9.00R20
20-8.5	12.00-20
24-8.5	12.00-24
24-10.0	14.00-24
25-14.00/1.5	17.5-25
25-17.00/1.7	20.5R25

Rim Size	Recommended    Tire
25-13.00/2.5	18.00-25
25-22.00/3.0	26.5-25
25-24.00/3.0	35/65R25
25-25.00/3.5	29.5-25
29-25.00/3.5	29.5-29
33-28.00/3.5	35/65R33
39-32.00/4.0	40/65R39

All the feature of3and 5-piece with the additional benefits of..

More unique and protective design

All the weld 100%UT tested

Use of standard construction wheel component

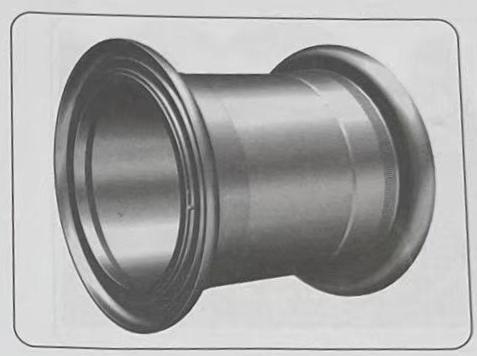

4.Light Construction

4.1 Grader/Small loader/Harvester

Rim Size	Recommended     Tire
20-10.00VA	14.00-20
21-10.00/1.7	14.00-21
21-18.00/1.7	24.00-21
24-8.00TG	12.00-24TG
24-9	13.00-24TG
24-10.00VA	14.00-24
24-11.00	16.00-24

Rim Size	Recommended Tire
25-10.00/1.5	14.00-25
25-12.00/1.3	15.5-25
25-14.00/1.5	17.5-25
25-17.00/1.7	20.5-25
25-30.0TH	67X34.00-25
25-36.0TH	66X44.00-25
25-44.0TH	1250X44.00R25

Typical lightweight applications

Removable side-ring and lockring for ease of tire mounting and servicing

Square face lockring to prevent incorrect installation

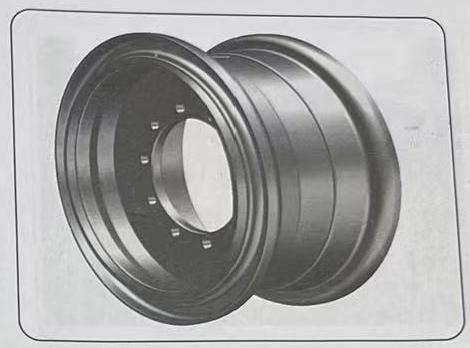

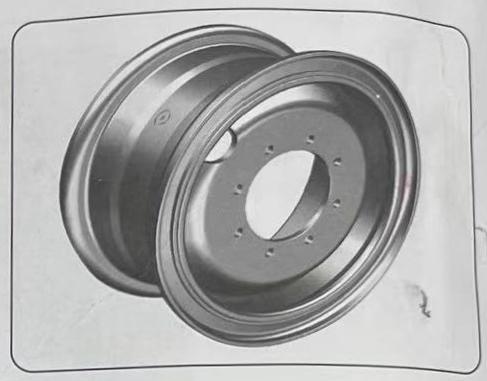

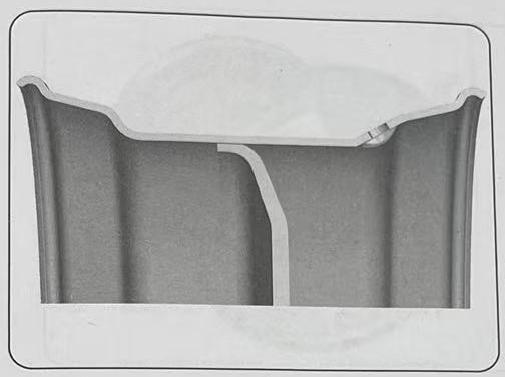

4.2 Skid Steer Loader/Grader/Roller/Aerial Work Platform Vehicle - (Single-Piece)

Rim Size	Recommended    Tire
15×7JA	9.5/65-15
15×8LB	11L-15
16×8LB	10.5/80-16
16.5×8.25	10-16.5
16.5×9.75	12-16.5
17.5×10.50	14-17.5
17.5×6.75	9R17.5
18×9	12.5/80-18

Rim Size	Recommended    Tire
20×11	340/80-20
20×W9	265/50R20
24×W8	9.5-24
28×13	385/45 -28
24.5×11.75	335/55R625
24.5×13.00	15-625
24.5×15.00	18R24.5
26×DW20	23.1-26

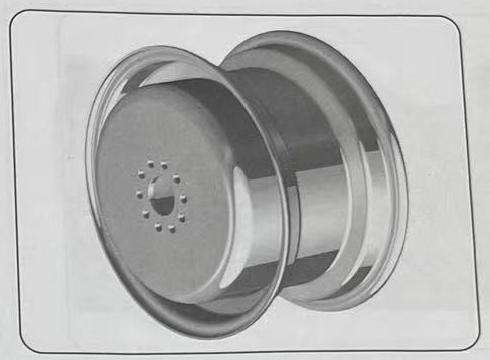

Single piece roll-formed rim contour

Formed and press-fit disc for  structural integrity and minimized weight.

Fully e-coated for corrosion protection

5.Earthmover Construction

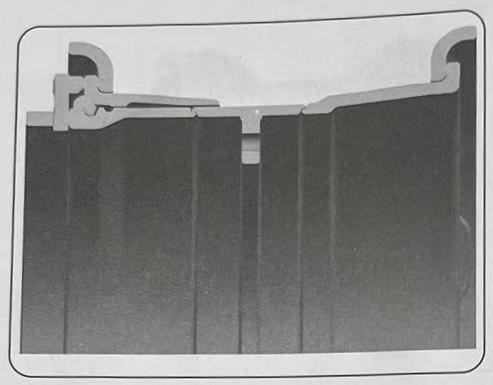

5.1 Loader

Rim Size	Recommended    Tire
25-11.25/2.0	16.00-25
25-13.00/2.5	18.00-25
25-12.00/1.3	15.2-25
25-14.00/1.5	17.5-25
25-17.00/1.7	20.5-25
25-19.50/2.5	23.5-25
25-22.00/3.0	26.5-25
25-25.00/3.5	29.5-25
29-17.00/3.5	24.00-29
29-24.00/3.0	30/65-29

Rim Size	Recommended     Tire
29-25.00/3.5	29.5-29
29-27.00/3.5	33.25-29
33-13.00/2.5	18.00-33
33-28.00/3.5	35/65-33
35-15.00/3.0	21.00-35
35-27.00/3.5	33.25-35
39-32.00/4.5	37.5-39
45-36.00/4.5	45/65-45
49-17.00/3.5	24.00-49

Typical 3 and 5-piece design

Removable side-ring andlockring for ease of tire mounting and servicing

More profile section component

Square face lockring(optional on 25")

Integral continuous pry barslot (optional on 33"and above)

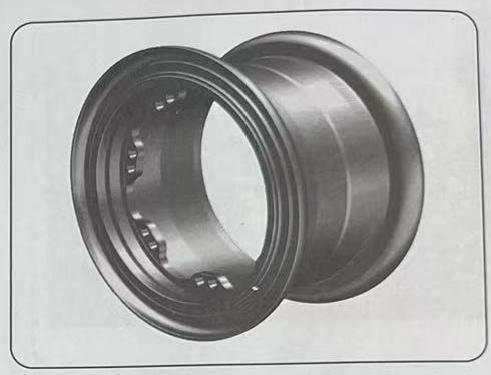

5.2 Loader-3-Piece I.F

Rim Size	Recommended     Tire
25-11.25/2.0IF	16.00R25
25-13.00/2.5IF	18.00R25
25-15.00/3.0IF	21.00R25
25-17.00/2.0IF	20.5R25

Rim Size	Recommended Tire
25-19.50/2.5IF	23.5R25
25-22.00/3.0IF	26.5R25
25-25.00/3.5IF	29.5R25

I.F.configuration for construction applications using 3piece rim.

Fewer components than standard 5-piece

Reduced tire slippage due to greater contact and friction between tire and integral flange

Less tire chafing-improved interface between tire and rim interface

Less tire wind-up with only one loose flange element

No flange fretting-flange and bead-seat are one unit piece

Better air seal-Complete interface between tire and rim

6.Mobil Crane

6.1 Rough Terrain Crane

Rim Size	Recommended Tire
25-11.25/2.0IF	16.00R25
25-13.00/2.5IF	18.00R25
25-15.00/3.0IF	21.00R25
25-17.00/2.0IF	20.5R25
25-19.50/2.5IF	23.5R25
25-22.00/3.0IF	26.5R25
25-25.00/3.5IF	29.5R25

Rim Size	Recommended Tire
25-11.25/2.0	16.00-25
25-13.00/2.5	18.00-25
25-15.00/3.0	21.00-25
25-17.00/2.0	20.5-25
25-19.50/2.5	23.5-25
25-22.00/3.5	26.5-25
25-25.00/3.5	29.5-25
29-25.00/3.5	29.5R29

Available on 3-piece or 5-piece construction

Suitable for highway use

6.2 All Terrain Crane

Rim Size	Recommended Tire
25-9.50/1.7CR	14.00-25
25-11.00/1.7CR	16.00-25

Rim Size	Recommended Tire
25-14.00/1.7CR	17.5-25
25-17.00/1.7CR	20.5-25

Designed and tested for highway speeds of up to 80km/h

3-piece construction rather than 5-piece

Square face lock ring to prevent incorrect installation

7.Dockside

Reach  Stacker / Container Handler / Rubber gantry crane

Rim Size	Recommended Tire
24-8.5	12.00-24
24-10.0	14.00-24
24-10.00WA	14.00R24
25-11.25/2.0	16.00-25

Rim Size	Recommended Tire
25-13.00/2.5	18.00-25
25-15.00/3.0	21.00-25
33-13.00/2.5	18.00-33
35-15.00/3.0	21.00-35

Designed for heavy industrial lift equipment

All the weld 100%UT tested

Special design for high pressure

8. Straddle Carrier / Girder Carrier / Launching Gantry

Rim Size	Recommended Tire
15-9.75	355/65-15
15-11.5	32 X14.5-15
17.5-6.75	235/75R17.5
18-9.75	355/65R18
20-10.0	14.00-20
22.5-11.75	385/65R22.5

Rim Size	Recommended Tire
25-11.25/2.5	16.00-25
25-13.00/2.5	18.00-25
25-15.00/3.0	21.00-25
25-17.00/2.0	20.5-25
25-19.50/2.5	23.5-25
25-22.00/3.0	26.5-25
35-15.00/3.5	21.00-35

Available on 3-piece or 5-piece construction

Design for a more compact space

9. Aircraft Tug / Shuttle bus

Rim Size	Recommended Tire
15-6.5	8.25-15
15-7.0	250/70R15
15-9.75	355/65R15
19.5-8.25	285/70R19.5
24-8.5	12.00-24

Rim Size	Recommended Tire
24-10.0	14.00-24
25-10.00/1.5	14.00-25
25-11.00/1.7CR	445/95R25
25-11.25/2.0	16.00-25
25-13.00/2.5	18.00-25

10.High load / Highway speed / Sand and more

Rim Size	Recommended Tire
9-4.00E	6.00-9
16-14.00/1.5	16.00-16
22-11.00	415/80R22
22-12.25	445/85R22
22-8.5	305/70R22
22-17.00/2.0	20.5-22

Rim Size	Recommended Tire
23-11.00/2.0	14.00-23
23-18.00/2.0	24.00-23
24-11.25/2.0	16.00-24
34-16.00/1.5	53X18-34
37-33.00/3.0	61X38-37
