The design of the spoke air holes of commercial vehicle wheels is a complex and important process, which involves multiple factors, such as the strength of the spoke, ventilation effect, aerodynamic performance, and manufacturing process. The following is a detailed analysis of the design of the spoke air holes of commercial vehicle wheels:

一、 Design goals

1. Strength requirements:

The design of the air holes must first meet the strength requirements of the spokes to ensure that the strength of the overall structure of the wheel is not reduced due to the presence of the air holes during load-bearing and driving.

2. Ventilation effect:

The main function of the air holes is to dissipate heat and ventilation, so as to reduce the impact of heat generated during braking on wheels and tires, and improve braking performance and service life.

3. Aerodynamic performance:

Through reasonable air hole design, the wind resistance of the wheels during driving can be reduced, improving the vehicle's fuel economy and endurance.

二、Design elements

1.Number of air holes:

The number of air holes is generally determined by the size and strength requirements of the spokes. Generally, larger spokes will be designed with more air holes to provide better ventilation.

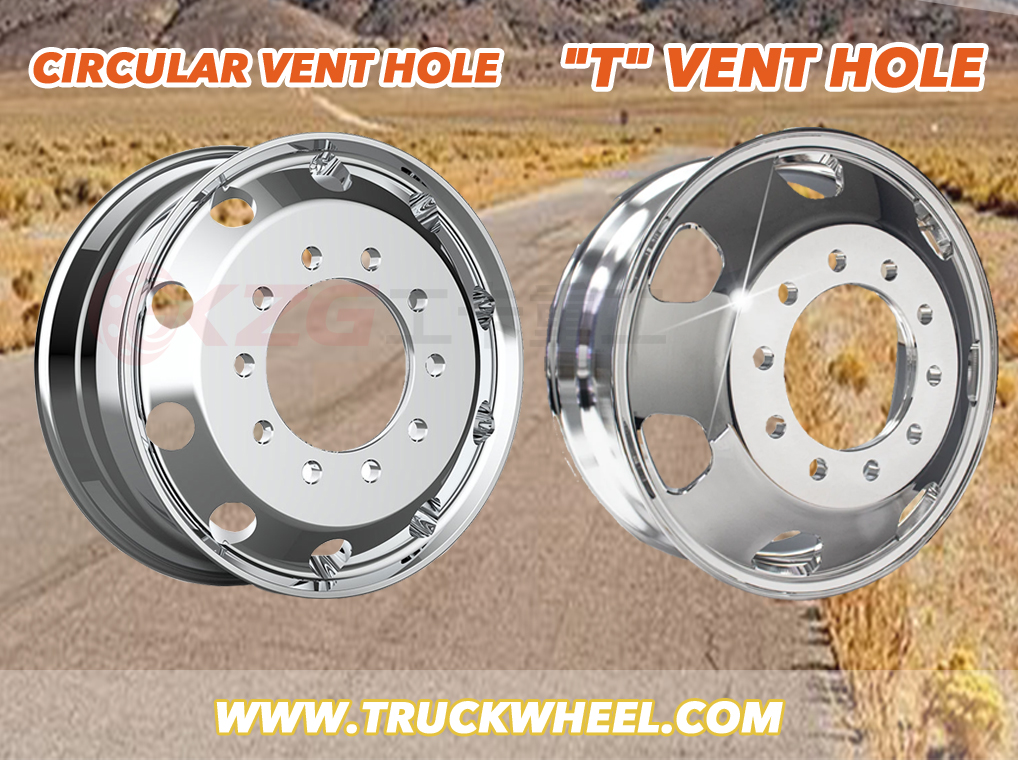

2.Air hole shape:

The shapes of air holes vary, and the most common ones are round, oval, rectangular, etc. The choice of shape should take into account the difficulty of the manufacturing process and the ventilation effect. Simple shapes such as round and oval are easier to process and have better ventilation effects.

3. Air hole layout:

The layout of air holes should be uniform and reasonable, and avoid opening air holes in stress concentration areas to reduce the impact on the spoke structure. At the same time, the layout of air holes should also take into account the smoothness of air flow to improve ventilation effect.

三、 Design Methodology

1.Finite element analysis:

Finite element analysis software is used to perform strength verification and aerodynamic analysis on the spokes to determine the number, shape and layout of the air holes. This method can accurately simulate the stress and air flow of the wheel under different working conditions, providing a scientific basis for the design.

2. Aerodynamic test:

Aerodynamic tests are conducted on the wheels in a wind tunnel test room to verify and optimize the design of the air holes by measuring the drag coefficient and heat dissipation effect of the wheels at different wind speeds.

四、Manufacturing process

1. Stamping process:

For metal spokes, the air holes are usually processed by stamping process. The stamping process has the advantages of high production efficiency, low cost and high precision.

2. Casting process:

For spokes made of lightweight materials such as aluminum alloy, the casting process can be used for integrated molding. During the casting process, the structure of the air hole can be directly formed without subsequent processing.

五、 Precautions

1. Material selection:

Choose the appropriate material according to the use conditions and performance requirements of the wheel. For example, for wheels that need to withstand large loads and high temperatures, high-strength and high-heat-resistant materials should be selected.

2. Process control:

During the processing, the process parameters such as punching pressure, punching speed, die gap, etc. should be strictly controlled to ensure the processing accuracy of the air holes and the overall quality of the spokes.

3. Quality inspection:

The finished wheels are subjected to quality inspection, including size inspection, strength inspection, aerodynamic performance inspection, etc., to ensure that the wheels meet the design and use requirements.

In summary, the design of spoke air holes in commercial vehicle wheels is a process that takes multiple factors into consideration.

In summary, the design of spoke air holes in commercial vehicle wheels is a process that takes multiple factors into consideration. Through reasonable design methods and manufacturing processes, it can be ensured that the wheels have good ventilation and aerodynamic performance while meeting strength requirements.
