Hub Pilot Vs. Stud Pilot: The Critical Distinction Every Commercial Wheel Buyer Must Know

In the complex world of heavy-duty truck components, few details are as consequential yet confusing as the wheel mounting system. When importers and fleet managers place orders, the conversation often revolves around size, load rating, and finish. However, if you fail to specify whether you need a Hub Pilot or a Stud Pilot wheel, you risk facing costly returns, installation delays, and potentially catastrophic safety failures.

These two systems are not interchangeable. Understanding the mechanical differences between them is the foundation of professional procurement and fleet safety.

The Fundamental Difference: What Centers the Wheel?

The core difference lies in how the wheel is centered on the axle. Despite the lug nuts holding the wheel in place in both systems, the component responsible for centering the wheel differs entirely.

1. Stud Pilot (The "Budd" Style)

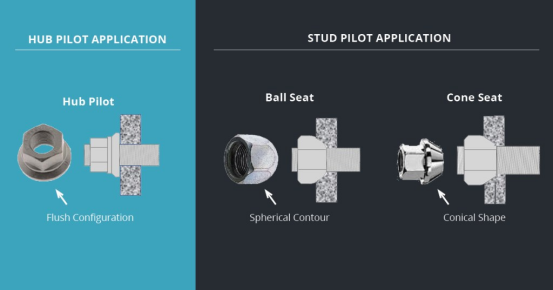

· How it works: In this system, the wheel studs themselves act as the centering guide. The holes in the wheel are chamfered (beveled) to match the shape of the nuts.

· The Nuts: This system requires special Ball Seat or Convex nuts. The rounded shape of the nut seat fits into the beveled hole of the wheel, pulling it into the center position.

· Common Usage: Historically common in North American heavy-duty applications and on older trucks. It is often the preferred choice for severe off-road or heavy-haul applications where the sheer mass of the studs helps center the heavy wheel.

2. Hub Pilot (The "ISO" Style)

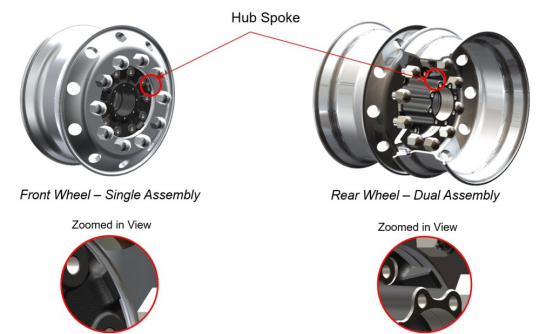

· How it works: This is the modern industry standard. The wheel is centered by a small raised lip (the pilot) on the axle hub, which fits precisely into the center bore of the wheel.

· The Nuts: The wheel holes are flat and un-chamfered. Because the hub centers the wheel, the nuts (and washers) are Flat Seat or Magne Style. Their only job is to clamp the wheel to the hub; they do not provide centering.

· Common Usage: The standard for almost all modern commercial trucks, school buses, and trailers. It is the dominant system in Europe and is increasingly universal in global markets.

Why This Matters to Your Business

For an importer or a purchasing agent, the distinction between Hub Pilot and Stud Pilot is not just technical—it is financial.

1. The "Parts Mix-Up" Risk

Because Stud Pilot wheels have beveled holes and Hub Pilot wheels have flat holes, using the wrong nut is disastrous:

· If you use a Ball Seat Nut on a Hub Pilot Wheel, only a tiny ring of the metal will make contact. This will cause the wheel to wobble, crack, and potentially snap the studs.

· If you use a Flat Nut on a Stud Pilot Wheel, the wheel will not center. It will vibrate violently, leading to premature stud failure and wheel separation.

For Fleet Managers: This creates a maintenance nightmare. Mechanics in the shop must be strictly trained to keep these two hardware types separate. Cross-contamination in a toolbox is a liability waiting to happen.

2. Sourcing and Inventory Accuracy

For importers, accuracy in the Product Data Sheet (PDS) is non-negotiable. A container of 22.5x8.25 wheels is useless if the mounting style does not match the local market's demand.

· Tip: Always verify the "Bore" size and "Seat Type" in your purchase orders. Hub Pilot wheels will specify a precise Pilot Bore diameter (e.g., 221mm or 281mm). Stud Pilot wheels focus on the bolt circle and hole chamfer.

3. Handling and Installation Efficiency

Fleet managers prefer Hub Pilot wheels for one practical reason: Ease of mounting. With a Hub Pilot wheel, the technician can hang the wheel on the hub lip, freeing their hands to start the lug nuts. With a Stud Pilot wheel, the heavy wheel must be manually lifted and aligned onto the studs, which is slower and more physically demanding. For large fleets, this difference adds up to significant labor hours.

Can You Convert Between Them?

A common question from buyers is: "Can I convert my fleet from Stud Pilot to Hub Pilot?"

Technically, yes, using conversion kits that replace the hubs and drums. However, this is an expensive retrofit and usually not cost-effective unless you are already overhauling the axle assembly. For most buyers, the rule is simple: specify the correct style for the existing axle.

Conclusion: Precision is Key

Whether you are sourcing for a national distribution network or maintaining a local fleet, the mantra is the same: Never assume.

Always confirm the axle specification before placing an order for wheels or wheel hardware. At Gongka Wheels, we prioritize technical accuracy in every shipment. We provide detailed specifications for both Hub Pilot and Stud Pilot configurations, ensuring that the wheels you import fit perfectly the first time, every time.

Are you sourcing wheels for a mixed fleet? Contact our engineering team to ensure you get the right mounting system for your application.
